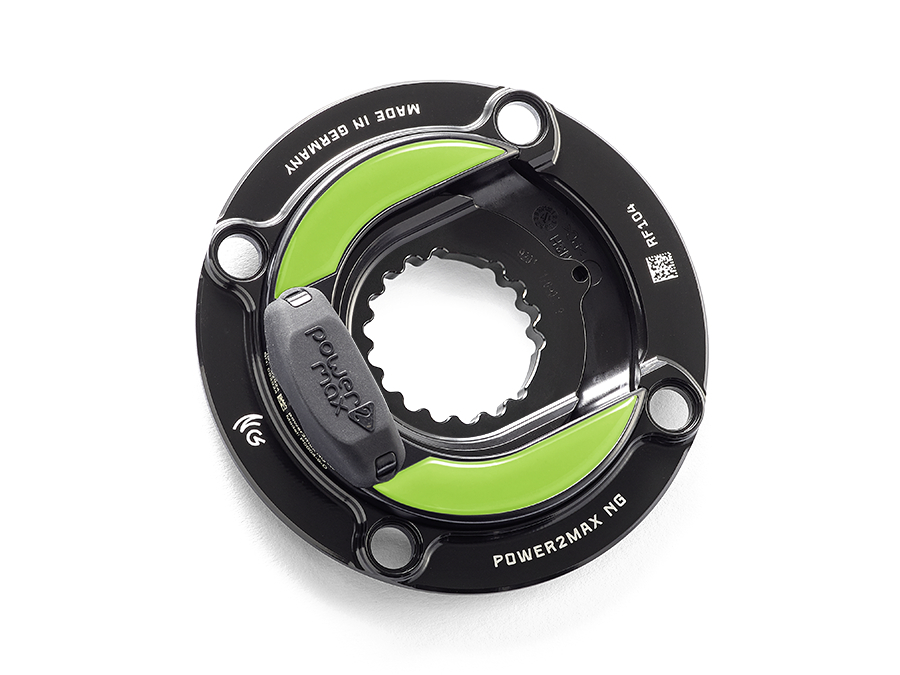

Power2Max NGeco MTB Power Meter - Cannondale

$ 1099.00
Bolt Circle Diameter
QTY
SKULM-NEM-CAN00-001.0104
Description
Warranty



WARNING

This product Contains a Button/Coin Battery.  A lithium battery can cause severe or fatal injuries in 2 hours or less if it is swallowed or placed inside any part of the body.  Keep batteries out of reach of children.  If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention.



The NGeco MTB Cannondale power meter spider is the power meter for all cyclist who already use a Cannondale SI, SISL or SISL2 crank set with the Cannondale AI (Super Boost) chainline and a 1x drive train.

The chainline of this powermeter is 55mm and corresponds to the Super Boost or AI-chainline. To support Boost chainline, an adapter is needed (ZB-SAX-00104-M01.SBNG)

- SPECIFICATIONS -

Physical

  • Weights - 130g
  • Fitment options (BCD) - 104
  • Water Resistant: yes

Battery

  • Type: CR2450 coin cell (replaceable)
  • Life: up to 300 hrs

Data

  • Metrics: power, cadence
  • Power Accuracy:  +/- 2%
  • Torque: 0 - 250 Nm
  • Power: 10 - 2999 W
  • Cadence: 20 - 250 RPM
  • Data Transmission: ANT+, BLE
  • Active temperature compensation: yes
  • Calibration: automatic zero-point adjustment (no user calibration required!)

Compatibility

  • Crankset - fitting Cannondale crankset with a removable spider is needed (SI, SISL, SISL2).
  • Installation - to mount the right crankarm to the power meter, you will need the lockring tool for FSA, Cannondale and Specialized cranks (ZB-SAX-WZFSA-K01.0000)
  • Fitment - it is recommended to use Loctite 243 or similar threadlocker.

Other

  • Manufacturer's Warranty: 5 years (NG model) / 2 years (NGeco model)



- INCLUDES -

  • Powermeter
  • Silicon cover
  • Quickstart guide
For more information about our Warranty & Returns process please visit our Help desk

POWER2MAX WARRANTY INFORMATION


POWER2MAX guarantee their products to be free of manufacture defects, to the original purchaser, for 2 years.

This warranty does NOT cover normal wear and tear, incorrect installation, modification or products which have been otherwise tampered with, and crashed products.

All POWER2MAX products must be assessed by the manufacturer prior to warranty decisions being made.Dealers are not authorized to replace POWER2MAX products without prior approval or evaluation.If you have a POWER2MAX product that you believe should be considered for warranty, please take it back to the retailer you purchased from with your dated receipt – OR – contact POWER2MAX directly via their support page. https://www.power2max.com/en/warranty/

For more information and installation instructions, please refer to the following; https://www.power2max.com/en/faqs/
