$ 17.24 | |
TX Plus Size | |
length | |
QTY | |
SKU | W-05134677001 |

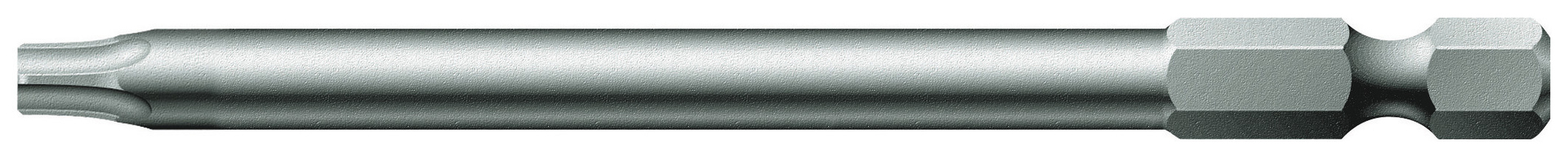

High quality bits for recessed TORX PLUS® screws. TORX PLUS® profile: in comparison to normal TORX® profiles, the enlargement of the 6 torque-transferring flanks between the tool and the screw is effected by means of an ellipse-shaped profile design and not a circular one. This means that the power applied when screwdriving is spread over a larger area. Higher torque is transferred and the service life of the screw and tool is also enhanced. Tough viscous for universal use. 1/4" hexagon, suitable for holders as per DIN ISO 1173-F 6.3.
Code | mm | inch | mm | |||
05134664001 | 1 IP | 50 | 2 | 2.0 | ||
05134665001 | 2 IP | 50 | 2 | 2.0 | ||
05134668001 | 3 IP | 50 | 2 | 2.0 | ||
05134691001 | 4 IP | 50 | 2 | 3.0 | ||
05134678001 | 5 IP | 50 | 2 | 3.0 | ||
05134680001 | 6 IP | 50 | 2 | 3.0 | ||
05134667001 | 6 IP | 89 | 3 1/2 | 3.0 | ||
05134690001 | 6 IP | 152 | 6 | 3.0 | ||
05134681001 | 7 IP | 50 | 2 | 3.0 | ||
05134679001 | 8 IP | 50 | 2 | 3.0 | ||
05134670001 | 8 IP | 89 | 3 1/2 | 3.0 | ||
05134682001 | 8 IP | 152 | 6 | 3.0 | ||
05160917001 | 9 IP | 50 | 2 | 3.0 | ||
05134669001 | 9 IP | 89 | 3 1/2 | 3.0 | ||
05134683001 | 10 IP | 50 | 2 | 4.0 | ||
05134684001 | 10 IP | 70 | 2 3/4 | 4.0 | ||
05134671001 | 10 IP | 89 | 3 1/2 | 4.0 | ||
05134685001 | 15 IP | 50 | 2 | 4.0 | ||
05134686001 | 15 IP | 70 | 2 3/4 | 4.0 | ||
05134672001 | 15 IP | 89 | 3 1/2 | 4.0 | ||
05134687001 | 20 IP | 50 | 2 | 4.5 | ||
05134688001 | 20 IP | 70 | 2 3/4 | 4.5 | ||
05134673001 | 20 IP | 89 | 3 1/2 | 4.5 | ||
05134674001 | 25 IP | 89 | 3 1/2 | 6.0 | ||
05134675001 | 27 IP | 89 | 3 1/2 | 6.0 | ||
05320430001 | 30 IP | 50 | 2 | 6.0 | ||
05134676001 | 30 IP | 89 | 3 1/2 | 6.0 | ||
05134677001 | 40 IP | 89 | 3 1/2 | - |
