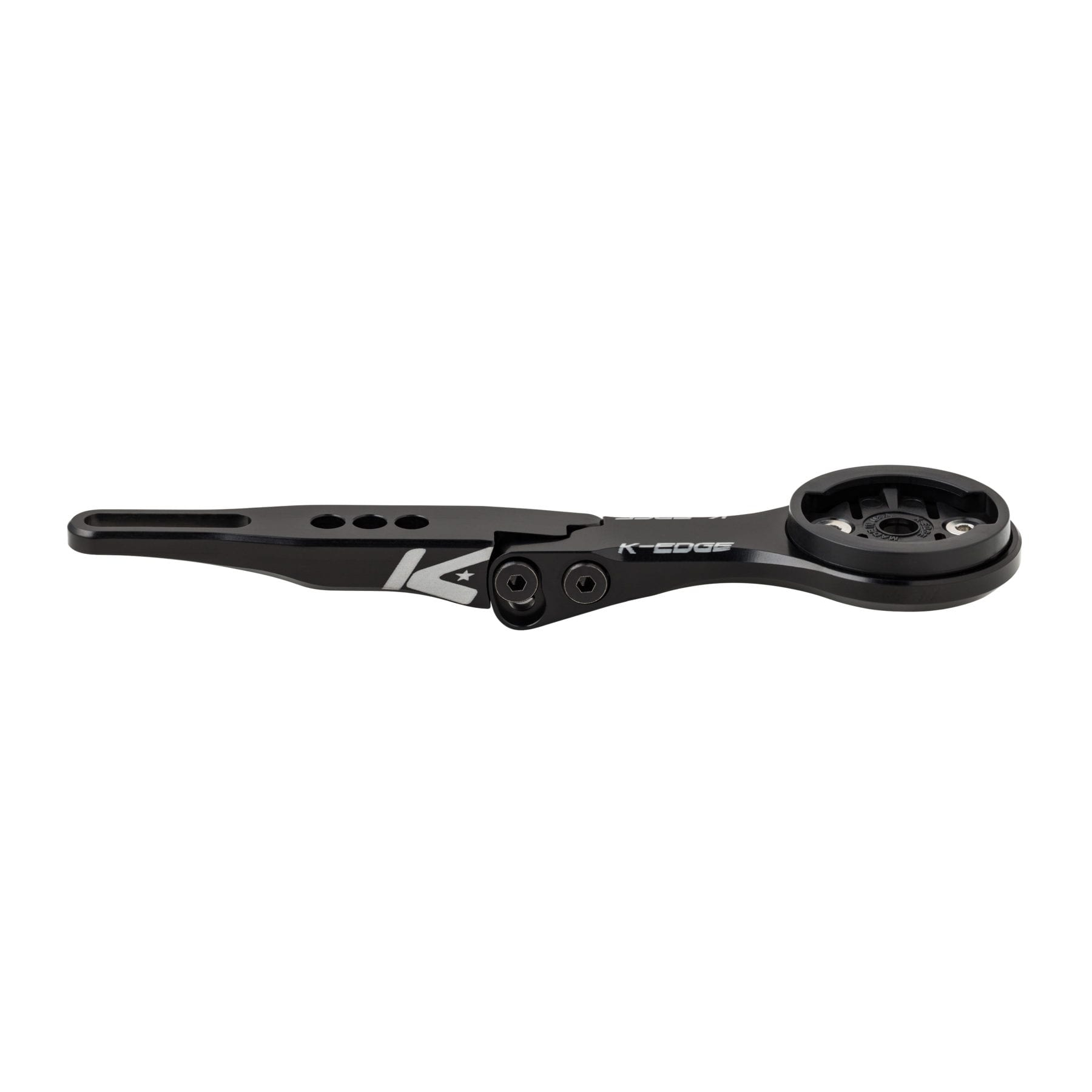

K-EDGE Integrated Handlebar System Mount for Garmin
Description
Warranty
For the latest info on product compatibility and installation, check the K-Edge website by clicking HERE
World Tour tested and proven. The ultimate one-piece bar/stem systems call for an elite level mount that positions your computer solidly out-front and aero.
All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot (see installation instructions). Failure to do so will void the lifetime warranty.
Attributes (specs):
- For Integrated Handlebar (one piece) bar/stem
- Pro-level mount with -7 degree articulation for custom computer positioning
- Lifetime warranty. CNC Machined. Black Anodized
- GARMIN approved replaceable computer insert protects computer tabs
- Not combo compatible (choose K13-2500iC mount for Combo use)
- M5 hardware included. If a smaller bolt required, use an 8.4mm washer to ensure a secure fit
- Made in-house. Boise, Idaho USA
Compatibility:
- All Garmin cycling computers.
- Most Canyon integrated handlebar-stem systems (not compatible with Canyon H36 integrated bar). **M4x20mm 0.7 thread pitch hardware not included.**
- Click Here for our Canyon Fit Kit
- Combo Adapter (K13-580-BLK) is NOT compatible and will void the lifetime warranty.
- NOT COMPATIBLE WITH: SHIMANO PRO VIBE EVO, CERVELO WISHBONE SYSTEM (ABO8, CS028 V-STEM), VENTUM INTEGRATED HANDLEBARS, COLNAGO R41 STEM, VISION METRON 5D, BLACK INC. INTEGRATED HANDLEBARS, BMC ICS HANDLEBARS/STEMS.

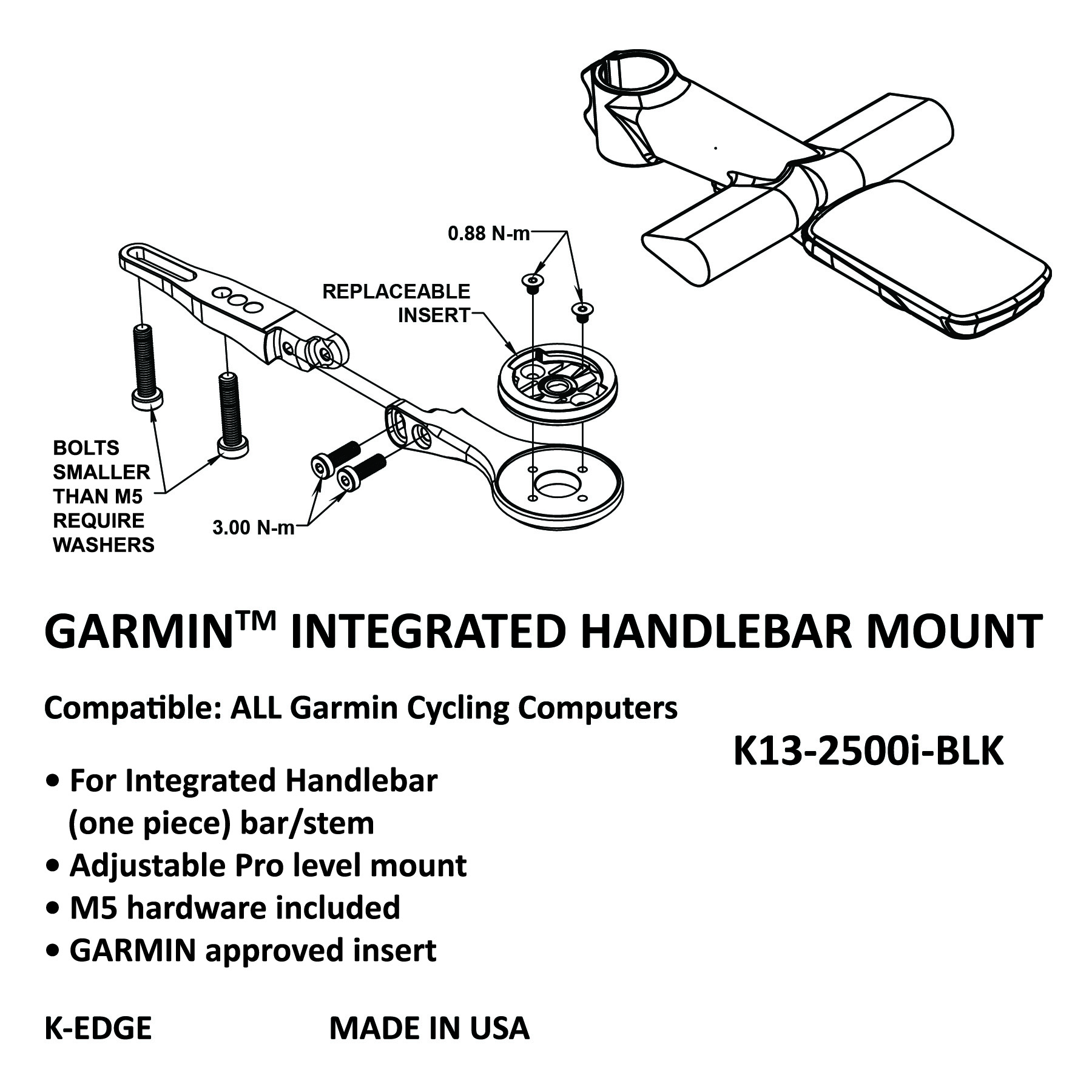

Installation:
- All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot. Failure to do so will void the lifetime warranty.
- All IHS mounts must be directly mounted to the handlebar without the use of shims or adapters.
- Installation of an IHS mount in any orientation that is not following the above guidelines will void the K-EDGE lifetime warranty.
For more information about our Warranty & Returns process please visit our Help desk
K-EDGE WARRANTY INFORMATION
K-EDGE guarantee their products to be free of manufacture defects, to the original purchaser, for the product’s lifetime.
This warranty does NOT cover normal wear and tear, incorrect installation or over-torque, modification, products which have had their assembly bolts either tampered or removed, and crashed products.
All K-EDGE products must be returned for evaluation prior to warranty decisions being made. Dealers are not authorized to replace K-EDGE products without prior approval or evaluation.
If you have a K-EDGE product that you believe should be considered for warranty, please take it back to the retailer you purchased from with your dated receipt – OR – contact K-EDGE directly with a completed WARRANTY RETURN FORM.
https://k-edge.com/warranty-return-online-form/
For more information and installation instructions, please refer to the following;
https://k-edge.com/technical/
K-EDGE guarantee their products to be free of manufacture defects, to the original purchaser, for the product’s lifetime.
This warranty does NOT cover normal wear and tear, incorrect installation or over-torque, modification, products which have had their assembly bolts either tampered or removed, and crashed products.
All K-EDGE products must be returned for evaluation prior to warranty decisions being made. Dealers are not authorized to replace K-EDGE products without prior approval or evaluation.
If you have a K-EDGE product that you believe should be considered for warranty, please take it back to the retailer you purchased from with your dated receipt – OR – contact K-EDGE directly with a completed WARRANTY RETURN FORM.
https://k-edge.com/warranty-return-online-form/
For more information and installation instructions, please refer to the following;
https://k-edge.com/technical/
